If your boiler pressure is too high, don’t panic. A small increase when the heating comes on is normal because water expands as it heats. What matters is how far the pressure rises and what happens afterwards.

If the gauge repeatedly climbs towards the boiler’s upper limit, keeps rising after you correct it, or falls unusually low again once the system cools, it may point to an underlying problem.

So, why is my boiler pressure high? The answer depends on the pressure when the boiler is cold, how much it rises when the heating is running, and whether it falls again afterwards.

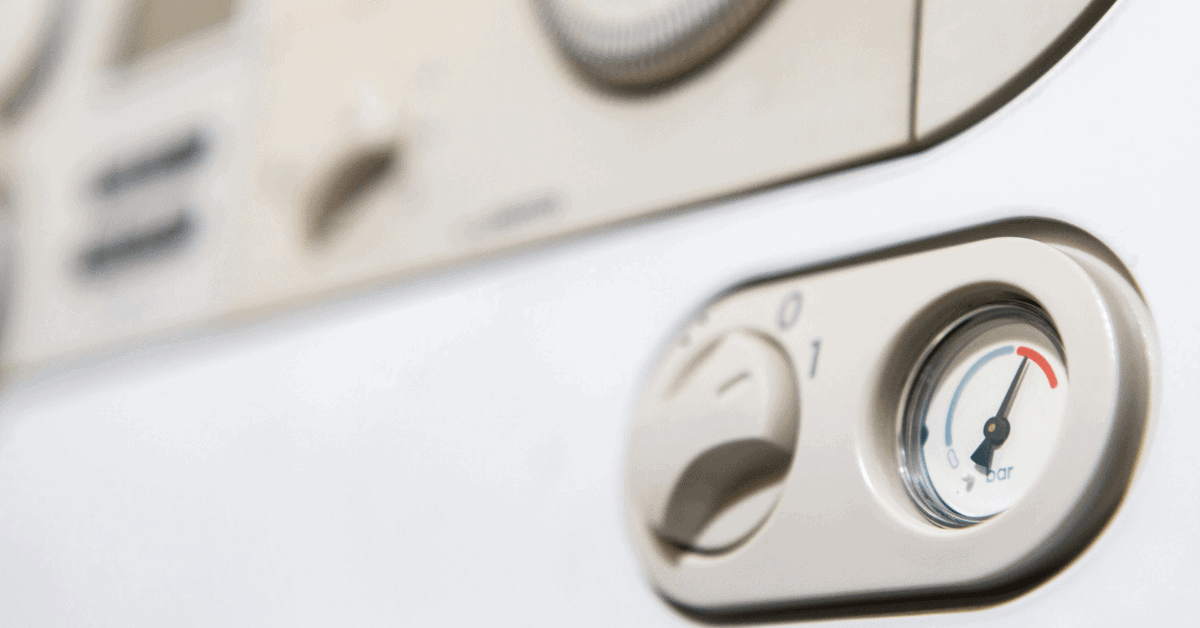

What Pressure Should a Boiler Normally Be?

For many domestic sealed heating systems, boiler pressure is usually around 1 to 1.5 bar when the system is cold. When the heating is running, the pressure will normally rise as the water heats and expands, and it may reach around 2 bar.

The exact recommended range varies by boiler, so check your manufacturer’s instructions for the correct pressure for your model.

What matters most is the change between cold and hot. A small rise is normal. If the pressure climbs sharply, approaches 3 bar or keeps increasing each time the heating runs, there may be a problem that needs investigating.

Is It Normal for Boiler Pressure to Rise When the Heating Comes On?

Yes, to an extent. When your heating comes on, the water circulating through the system heats up and expands. As a result, boiler pressure normally rises somewhat.

The important thing is how much the pressure rises and what happens afterwards. A small increase that settles as the system heats is different from a gauge that continues climbing every time the heating runs.

Look out for these patterns:

• Small, stable increase: The pressure rises as the system heats and then settles within the manufacturer’s recommended range.
• Large swing every heating cycle: The pressure rises significantly when the heating is on and drops again as the system cools.
• Continual increase: The gauge keeps climbing instead of settling as the system reaches temperature.
• Pressure reaching the relief point: The pressure becomes excessive, and the safety relief mechanism may discharge water, causing the reading to fall afterwards.

So, seeing the gauge move when the heating comes on is not necessarily a sign that something is wrong. The size and pattern of the change can indicate whether further investigation is needed.

Why Is My Boiler Pressure Too High?

There are several possible reasons for boiler pressure too high, from the system simply being overfilled to a fault that needs to be diagnosed by an engineer. Looking at when the pressure rises can help narrow down what may be happening.

The System Was Overfilled

If you recently repressurised your heating system, too much water may have been added. This can leave the pressure higher than the recommended range, particularly once the water heats up and expands.

If the pressure became high shortly after you added water, overfilling is one of the first things to consider. It is useful to remember what the gauge showed before and after you repressurised the system.

The Filling Loop Hasn’t Closed Properly

The filling loop allows mains water into the central heating system when the pressure needs to be increased. Once the system has been repressurised, its controls should be returned to their normal closed position.

If a valve has been left partially open or is allowing water to pass when it should not, more mains water can continue entering the system. This can cause the pressure to rise even though you are not actively repressurising the boiler.

If your boiler pressure keeps rising without you adding water, the filling loop is one possible cause.

The Expansion Vessel Isn’t Doing Its Job

The boiler expansion vessel helps accommodate the increase in water volume that occurs as the heating system gets hotter.

If it is not working correctly, the pressure may rise much more than expected when the heating comes on. This can be particularly relevant when the pressure looks reasonable while the system is cold but climbs sharply once the heating is running.

Another Internal Boiler Fault

Other faults within the boiler or heating system can also cause abnormal pressure behaviour. These cannot be identified reliably from the pressure gauge alone and may require professional diagnosis.

Do not remove the boiler casing or attempt to work on internal components yourself. If the pressure continues to rise and the cause is not obvious from the normal user controls, a qualified engineer can investigate the system safely.

My Boiler Pressure Only Goes Too High When the Heating Is On

If your boiler pressure is within the expected range when the system is cold but rises significantly once the heating comes on, that tells you something different from a system that is already overpressurised while cold.

As the heating runs, the water inside the system gets hotter and expands. The expansion vessel is designed to accommodate this increase in volume and help keep the pressure under control.

A small increase is normal. However, if the gauge jumps a lot every time the heating comes on, the system may not be managing this expansion as it should. An issue with the expansion vessel is one possibility, although other faults can also cause abnormal pressure changes.

This is why checking normal boiler pressure in both the cold and heated states can be more useful than looking at a single reading. Use your boiler manufacturer’s guidance to determine the appropriate pressure range for your system.

Why Does My Boiler Pressure Go Up and Then Drop Again?

If your boiler pressure rises significantly when the heating is on and then falls unusually low again as the system cools, that pattern may indicate that the system is losing water after the pressure becomes too high.

One possible sequence is:

Pressure rises → safety relief may discharge water → the system cools → pressure falls.

Once the system has cooled, the lower reading may make you think it needs more water. However, repeatedly topping up the system does not necessarily fix the original problem. It can simply add more water, allowing the same pressure cycle to happen again when the heating comes on.

If your boiler pressure rises then drops, pay attention to when the changes happen and whether they correspond with the heating being switched on or off. This pattern can give an engineer useful information when diagnosing the cause.

Can You Lower Boiler Pressure Yourself?

You can carry out a few basic checks yourself to lower boiler pressure, but always follow your boiler manufacturer’s guidance before adjusting the system.

• Allow the boiler to cool: Check the pressure once the system has cooled, as the reading can be higher when the heating is running.
• Check the manufacturer’s guidance: Your boiler’s instructions should explain which controls are safe for you to use and the recommended pressure range.
• Check the filling loop: If you have recently repressurised the system, make sure the filling-loop controls are in their normal closed position. Do not dismantle or modify the filling loop.
• Bleed a radiator if appropriate: On some systems, bleeding a radiator can release a small amount of water and reduce the system pressure. Do not use this repeatedly to manage a pressure problem that keeps returning.

Never remove the boiler casing or attempt to work on internal components yourself. If the pressure keeps rising, a qualified engineer should investigate the underlying cause.

Why Does the Pressure Keep Coming Back Up?

If you lower the pressure and it rises again soon, that is an important clue that the underlying problem has not been resolved.

The pressure could be rising because water continues to enter the system, or because the system isn’t managing expansion correctly when the heating operates.

If boiler pressure being too high keeps becoming a recurring issue:

• Don’t keep bleeding water off indefinitely to lower the pressure.
• Don’t keep resetting or repressurising the system without finding the cause.
• Have a qualified engineer diagnose the underlying fault.

Repeatedly lowering the pressure may only deal with the symptom. Finding out why the pressure keeps changing can prevent the same cycle from continuing.

Is High Boiler Pressure Dangerous?

A high boiler pressure reading does not automatically mean there is an immediate danger. Boilers have safety devices designed to respond if the pressure becomes excessive.

However, you should not ignore abnormal pressure. If the gauge repeatedly approaches the boiler’s upper limit, water discharges, or the boiler locks out, investigate the system.

A single change in pressure is less important than a pattern that keeps happening. If the pressure repeatedly becomes too high, it is better to find out why rather than continually releasing or adding water.

When Do You Need a Gas Safe Engineer?

If the pressure keeps returning to an unusually high level, it is time to stop repeatedly adjusting the system and have the cause investigated.

You should arrange for a qualified Gas Safe engineer to check the system if:

• The pressure repeatedly rises excessively.
• The PRV (pressure relief valve) discharge pipe is releasing water.
• The pressure rises dramatically when the heating is on and falls again when the system cools.
• The filling loop is closed, but the pressure continues to climb.
• The boiler locks out because of abnormal pressure.
• Diagnosing or fixing the problem would require access to internal boiler components.

An engineer can assess the system and identify whether the pressure problem is linked to the filling loop, expansion vessel, pressure relief system or another fault.

Frequently Asked Questions About Boiler Pressure

What happens if boiler pressure is too high?

If boiler pressure is too high, the system’s safety mechanisms may discharge water to reduce the pressure. The pressure can then fall once water has been released. A single high reading does not necessarily indicate serious damage, but pressure that repeatedly becomes excessive should be investigated rather than continually corrected.

Can boiler pressure be too high at 2 bar?

Not necessarily. A reading of 2 bar can be normal when the heating is running because pressure rises as the water heats and expands. However, 2 bar may be higher than expected when the system is completely cold, depending on your boiler. Check the pressure range specified in your manufacturer’s instructions and pay attention to how much the pressure changes between cold and hot.

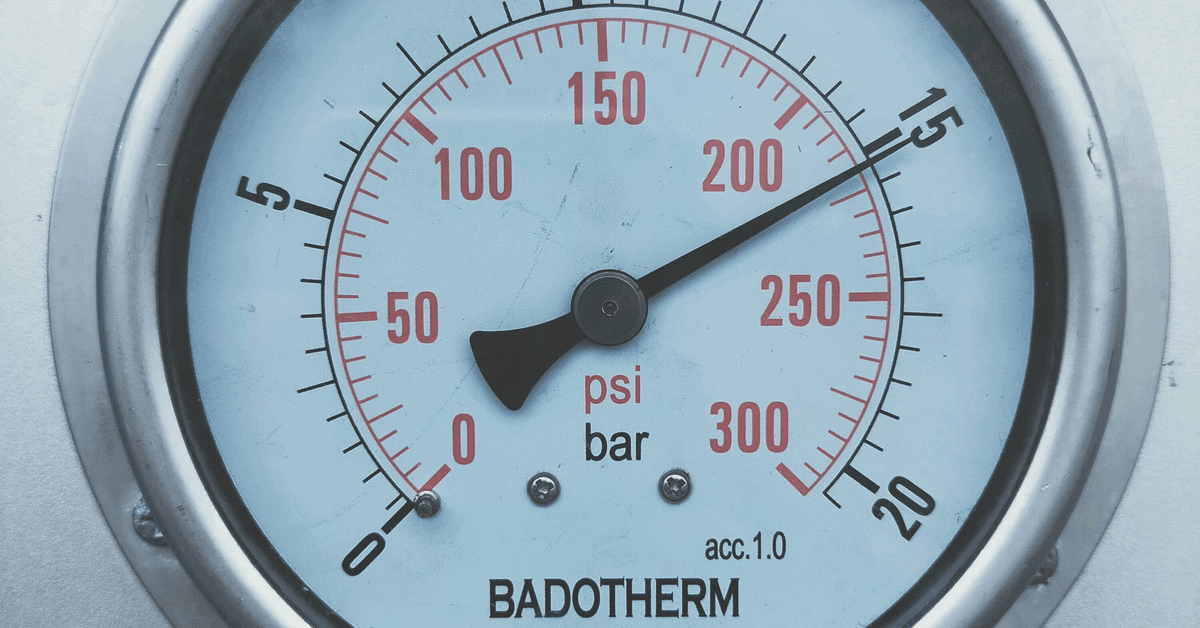

Why does my boiler pressure reach 3 bar?

A boiler pressure reaching around 3 bar usually indicates that the system pressure is too high. On many sealed heating systems, the pressure relief valve is designed to operate at around 3 bar and may discharge water to protect the system. If the gauge repeatedly reaches this level, particularly when the heating is on, the underlying cause should be investigated.

Can high boiler pressure damage the boiler?

Yes, high boiler pressure can put additional strain on boiler components if it occurs repeatedly. It may also cause the system’s safety mechanisms to discharge water. A single high reading does not necessarily mean the boiler has been damaged, but persistent pressure problems should be investigated rather than continually corrected.

Should I bleed radiators if boiler pressure is too high?

Yes, bleeding a radiator can reduce boiler pressure by releasing some water from the heating system. However, it should only be done where appropriate and according to the manufacturer’s guidance. If the pressure repeatedly becomes high again, bleeding radiators is not a long-term solution, and the underlying cause should be investigated.

Keep an Eye on the Pattern

A boiler pressure too high reading is not necessarily a sign of a major fault. A small increase as the heating warms up is normal, but a large or repeated rise is worth investigating.

The most useful clue is the pattern: what does the gauge show when the system is cold, how far does it rise when the heating comes on, and does it drop again afterwards?

If the pressure keeps climbing after being corrected, don’t keep releasing or adding water without finding the cause. Persistent pressure changes may need professional diagnosis. If you’re concerned about your boiler pressure or need a fault diagnosed, contact Absolute Plumbing Limited to assess your boiler and heating system.
