A leaking radiator valve doesn’t always need replacing, but the right fix depends on exactly where the water is escaping. Tightening may help if a sound connection has worked slightly loose, but it will not repair a damaged seal, corroded fitting or failed valve.

Before inspecting the valve, turn off the heating and allow the radiator to cool. This guide will help you identify which part of the radiator valve is leaking, what the location of the leak may indicate and whether the problem is likely to need adjustment, repair or replacement.

Where Is Your Radiator Valve Leaking From?

Use the table below to narrow down the likely source before you start adjusting anything.

Where the water appears	What it may indicate	What to check first
Around the spindle or beneath the valve head	A worn gland seal, spindle seal or internal sealing component	Dry the area and check whether the leak appears around the moving spindle or pin
Where the valve joins the radiator	A loose union, damaged radiator tail, failed sealing surface or misalignment	Check whether the first wet point is at the radiator connection rather than the valve body
Where the valve joins the pipe	A radiator valve compression joint leak involving the nut, olive or pipe	Check the compression nut and pipe immediately beneath the valve for the first sign of moisture
From the valve body itself	Cracking, corrosion or failure of the valve body	Look for water appearing through a crack, seam or visibly corroded section of the valve

Water can travel along the valve, pipe or radiator before it drips onto the floor, so the lowest wet point is not always the source. Dry the whole area first and watch for where the water first reappears.

How To Confirm The Exact Source Of The Leak

Once the table has given you an idea of where the water may be coming from, use these steps to confirm the source before you tighten or remove anything.

Step 1: Make Sure The Water Is Actually Coming From The Valve

Before deciding that the radiator valve is definitely leaking, check the radiator and pipework above it.

Water can run down from:

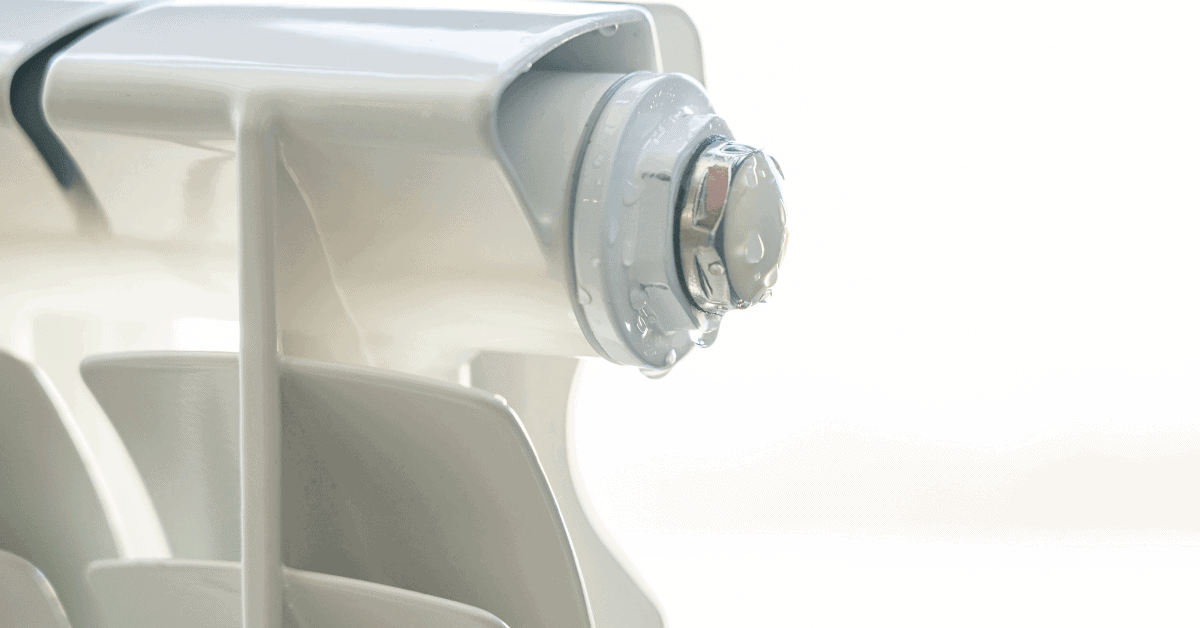

• Bleed valve: Water leaking from the bleed valve can travel down the radiator and collect around the lower valve.

• Top plug: A leaking top plug can allow water to run down the radiator and make the valve area appear wet.

• Radiator body: A pinhole, corrosion point or other leak in the radiator itself can send water down towards the valve.

• Nearby pipework: Water from pipework above or beside the radiator can travel along surfaces before dripping near the valve.

If the first wet point is above the valve, you may be dealing with a leaking radiator rather than a leaking radiator valve.

Step 2: Identify The Type Of Radiator Valve

Once you have confirmed that the water is coming from the valve area, identify which type of radiator valve you have. This will help you understand which parts of the valve you are looking at and where the leak may be starting.

• Manual radiator valve: Opened or closed by turning the head directly to control the flow of heating water through the radiator.

• Thermostatic radiator valve (TRV): Usually has a numbered head that adjusts the flow of heating water according to the room temperature.

• Lockshield valve: Usually has a plain protective cap and is used to balance the heating system rather than control the room temperature day to day.

The removable head on a TRV and the protective cap on a lockshield valve do not normally contain heating water themselves, so moisture around them may actually be coming from the valve mechanism or connection underneath.

Step 3: Turn The Heating Off And Let The Radiator Cool

Switch the heating off before inspecting the valve and allow the radiator and surrounding pipework to cool.

This reduces the risk of contact with hot water or hot metal and makes it easier to see where fresh moisture is appearing.

Turning the heating off does not remove all water or pressure from the system, so do not loosen water-bearing connections at this stage.

Step 4: Dry The Valve And Surrounding Pipework

Dry the valve, radiator connection and pipe beneath it thoroughly with a cloth or tissue.

Water can travel along the valve, pipe or radiator before dripping onto the floor, so the lowest wet point is not necessarily where the leak starts.

Step 5: Use Tissue To Find The First Wet Point

Wrap or hold small pieces of dry tissue around the different parts of the valve and check which one becomes wet first.

Pay particular attention to:

• Spindle or valve head: Check the area around the spindle and directly beneath the valve head for the first sign of moisture.

• Radiator connection: Check where the valve joins the radiator to see whether water is appearing around the union or radiator tail.

• Compression joint: Check where the valve connects to the pipework, particularly around the compression nut.

• Valve body: Check the body of the valve itself for moisture, cracking or visible corrosion.

The first area to become wet is usually the best indication of where the radiator valve leak is actually starting.

Step 6: Check Whether The Leak Changes When The Valve Moves

If it is safe to do so, gently adjust the valve and watch whether the leak changes.

A leak that becomes more noticeable when the valve is opened, closed or adjusted can point towards the spindle, gland or another moving part of the valve.

Do not force a stiff or seized valve, as this can damage the spindle, seal or valve body and may turn a small leak into a larger one.

If the leak continues, stop adjusting the valve and note exactly where the water first appears. The next section explains what a leak from the spindle, radiator connection, compression joint or valve body is likely to mean and whether the component may need adjusting, repairing or replacing.

Found The Leak? Here’s What It Means And What To Do Next

Once you have identified where the water is first appearing, the next step is to work out what that location is telling you. A leaking radiator valve can fail in several different places, and each one points to a different type of problem.

The aim here is not to guess. Use the leak location to narrow down what is most likely to have failed, what you can safely check, and when the valve or one of its connections may need repair or replacement.

Radiator Valve Leaking From The Top

If you have a radiator valve leaking from the top, the water is often escaping from around the spindle area beneath the valve head.

The spindle is the small moving part inside the valve that opens and closes as the valve is adjusted.

• What it could mean: The seal around the spindle may be worn, loose or damaged. Corrosion or wear inside the valve can also allow water to escape from this area.

• What you can check: Dry the top of the valve completely and watch whether water reappears around the spindle, especially when the valve is gently opened or closed.

• What may fix it: On some valve designs, a very minor seep may respond to a small adjustment of the gland nut. Not every valve has an externally serviceable gland, so do not assume there will always be a nut you can tighten.

• When to stop: If the leak continues after a gentle adjustment, do not keep tightening the valve. Overtightening can damage the seal or make the valve stiff to operate.

• What may be needed next: A persistent radiator valve spindle leak may require a new sealing component or, if the valve itself is worn or damaged, radiator valve replacement.

The important thing is that a leak from the top of the valve is not automatically just a loose-nut problem.

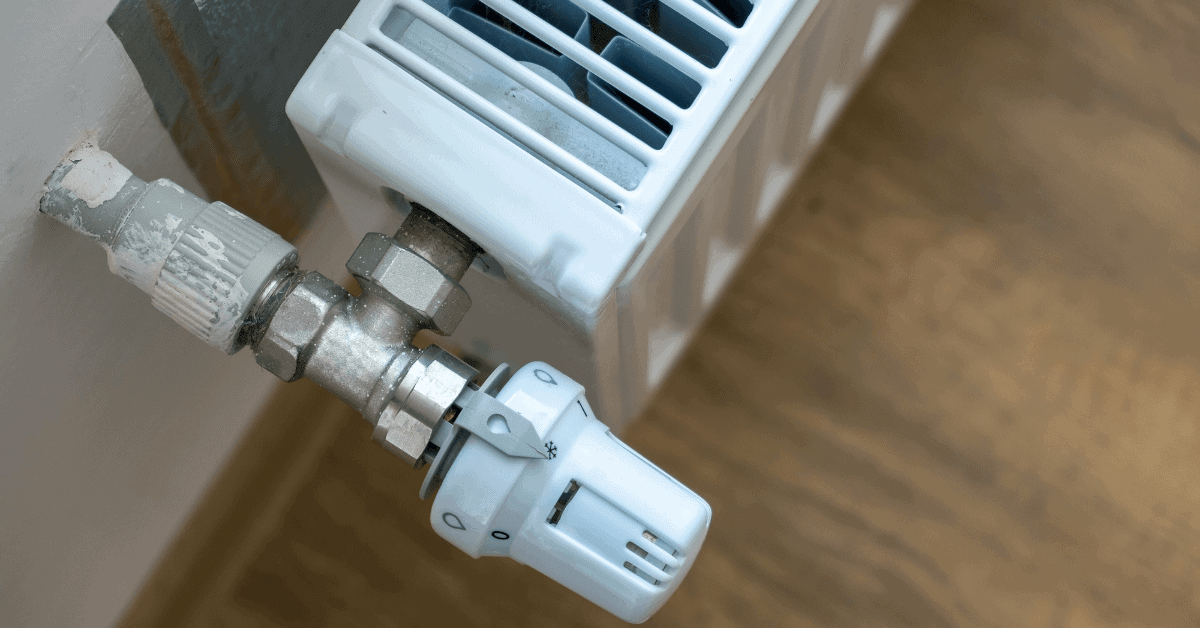

Leaking Thermostatic Radiator Valve

If you have a leaking thermostatic radiator valve, or TRV, and the water is appearing underneath the numbered valve head, the removable head itself is not normally the part holding the heating water.

The leak is more likely to be coming from the valve mechanism underneath the head or from one of the nearby connections.

• What it could mean: Water may be escaping from the spindle or pin area, a worn gland seal, the valve body or one of the pipe or radiator connections beside it.

• What you can check: Dry the area beneath the TRV head and watch carefully for the first wet point. This will help distinguish a leak from the valve mechanism from water travelling across from another joint.

• What the TRV head does: The thermostatic head senses the room temperature and operates the valve underneath it. A faulty or sticking head can cause temperature-control problems, but it does not necessarily mean the valve is leaking.

• Can the head be removed?: On most standard TRVs, the thermostatic head can be removed without draining the heating system because it is separate from the water-containing valve body. Always check the manufacturer’s instructions if you are unsure.

• What not to do: Do not confuse removing the TRV head with loosening the valve body itself. The valve body contains heating water and should not be dismantled unless the system has been properly isolated.

• What may be needed next: If the leak is coming from the spindle seal or valve body rather than the removable head, the valve may need repairing or replacing.

Radiator Valve Leaking Where It Joins The Radiator

If the radiator valve is leaking at the connection to the radiator, the problem is usually in the joint between the valve and the radiator itself.

This connection is commonly made using a radiator tail and union. The radiator tail screws into the radiator, while the union connects that tail to the valve.

• What it could mean: The union may have worked slightly loose, the sealing surface may have deteriorated, the radiator tail may be damaged or the valve and radiator may be slightly misaligned.

• What you can check: Dry the joint and look closely at the point where the valve meets the radiator. If this is the first place to become wet, the connection is more likely to be the source than the valve body.

• When tightening may help: A very small adjustment may stop a minor seep if the union has genuinely worked loose and the components are otherwise in good condition.

• When tightening will not help: Damaged threads, significant corrosion, a failed sealing surface, a cracked fitting or a damaged radiator tail will not be repaired simply by applying more force.

• What to be careful of: Avoid twisting the entire valve body while tightening the joint. The valve is also connected to the pipe beneath it, so turning the whole valve can place strain on the pipework and create another leak.

• What may be needed next: The joint may need to be dismantled and remade, or the radiator tail or another damaged component may need replacing.

A radiator valve leaking at connection should therefore be diagnosed before you keep tightening the union.

Radiator Valve Leaking Where It Joins The Pipe

If the water is appearing where the radiator valve meets the pipe below it, you are likely dealing with a radiator valve compression joint leak.

A compression joint normally uses a nut and a small metal ring called an olive. When the nut is tightened, the olive compresses around the pipe to create a watertight seal.

• What it could mean: The compression nut may have worked slightly loose, the olive may be damaged or poorly seated, the pipe may have moved, or the pipe surface may be scratched, corroded or distorted.

• What you can check: Dry the compression nut and the pipe immediately beneath it. Watch for moisture appearing around the nut or between the fitting and the pipe.

• When tightening may help: If the joint is otherwise sound, gentle tightening may stop a very minor seep.

• When tightening is not enough: If the leak continues, repeatedly tightening the nut can distort the olive or damage the fitting and pipework.

• What may be needed next: The compression joint may need to be dismantled and remade. That can involve replacing the olive or, if the pipe itself is damaged, cutting back the affected section before the joint is rebuilt.

• Will the system need draining?: Possibly. If the joint needs to be taken apart, the affected part of the heating system normally needs to be properly isolated or drained first.

A compression-joint leak is therefore very different from a leak through the valve body itself, even though both may leave water collecting underneath the valve.

Water Leaking From The Valve Body

If you have dried all the surrounding joints and the water is appearing directly from the metal body of the valve, the valve itself is likely to be damaged.

This is generally more serious than a slightly loose connection because the water is escaping through the component rather than around a removable joint.

• What it could mean: The valve body may be cracked, heavily corroded, perforated or damaged around a seam or casting.

• What you can check: Look closely for the first wet point on the metal body itself, rather than around the nuts or connections on either side.

• What will not fix it: Tightening nearby fittings will not repair a crack or corrosion in the valve body. Wrapping tape or applying sealant around the outside should not be treated as a reliable permanent repair.

• When replacement is more likely: Radiator valve replacement is usually the appropriate option if the body is cracked or perforated, corrosion has significantly weakened it, or the valve is seized and leaking.

• Why replacement is needed: Once the metal body itself has failed, continuing to adjust other fittings can delay the proper repair while the leak continues or worsens.

Can You Fix A Leaking Radiator Valve Without Draining The System?

Sometimes. Some leaking radiator valve repairs can be carried out without draining the heating system, while others require the affected part of the system to be isolated or drained.

The key difference is whether the repair involves a small external adjustment or whether a water-bearing component needs to be removed.

Repairs That May Be Possible Without Draining

Some minor issues may be dealt with without draining the system, provided the valve and surrounding pipework are in good condition.

• Spindle or gland leak: A very minor seep may sometimes respond to a small gland adjustment, depending on the valve design. On some TRVs, the gland seal itself can also be replaced without draining the system, but this is manufacturer- and valve-specific.

• Loose union: A sound connection between the valve and radiator may only need a careful minor adjustment if it has worked slightly loose.

• Sound compression joint: A very small leak at the compression nut may sometimes stop with gentle tightening if the joint has not been damaged.

• TRV head replacement: On many standard thermostatic radiator valves, the removable head can be replaced without draining because it is separate from the water-containing valve body. Check that the replacement head is compatible with the existing valve before fitting it.

• Minor external adjustment: If the problem can be corrected without opening a water-bearing joint, draining may not be necessary.

Do not keep tightening a fitting if the leak continues. Repeated adjustment can damage threads, distort an olive or place strain on the valve and pipework.

Repairs That Usually Require Isolation Or Draining

If the repair involves opening or removing a part that contains heating water, the affected section of the system will usually need to be isolated or drained first.

This commonly includes:

• Replacing the valve body: Removing the main valve body opens a water-bearing part of the heating circuit, so the radiator or affected section must be safely isolated. This often involves partial or full draining, although a professional may be able to use an alternative isolation method on some systems.

• Replacing a compression olive: The joint must be dismantled, which means the water supply to that section needs to be controlled first.

• Replacing a radiator tail: Removing the connection between the valve and radiator usually requires the radiator or heating circuit to be isolated.

• Remaking a damaged compression joint: If the fitting needs to be taken apart and rebuilt, the system cannot remain pressurised.

• Cutting back damaged pipework: Any repair that involves cutting or replacing pipework requires the affected section to be drained or isolated.

• Replacing a badly corroded fitting: Corroded components often need to be removed completely rather than adjusted in place.

Some heating systems can be isolated locally, while others may need to be partially or fully drained. The exact method depends on the system layout, valve type and access.

Can A Radiator Valve Be Replaced Without Draining The Whole System?

In some cases, yes. A plumber may be able to isolate the radiator or the relevant section of the heating circuit rather than draining the entire system.

Whether this is possible depends on:

• System design: Some systems are easier to isolate locally than others.

• Valve arrangement: Existing valves may allow the radiator or section to be shut off.

• Condition of the fittings: Seized, corroded or damaged valves can make local isolation unreliable.

• Location of the repair: A valve on an easily isolated radiator is different from work that affects a larger section of pipework.

It’s best not to assume that every radiator valve can be replaced without draining. If the valve itself needs to be removed and the system cannot be safely isolated, draining will be necessary.

Why Quick Fixes Can Cause Bigger Problems

A small drip can make it tempting to keep tightening the nearest nut or apply tape or sealant around the outside of the fitting. That can sometimes hide the leak temporarily without fixing the failed component underneath.

• Overtightening: This can distort an olive, damage threads or crack a fitting.

• Twisting the valve: Turning the valve body can place strain on the pipework and create a second leak.

• External sealant: Applying sealant around the outside does not repair a damaged internal seal, cracked valve body or failed compression joint.

• Repeated repressurising: Adding more water to a sealed system does not fix the leak and can mask ongoing water loss.

If the valve continues leaking after a sensible minor adjustment, the next step is to decide whether the affected component can be repaired or whether radiator valve replacement is the more reliable option.

When Does A Leaking Radiator Valve Need Replacing?

A leaking radiator valve does not automatically need replacing. A minor leak may sometimes be repaired if the valve body is still sound and the problem is limited to a serviceable seal, gland or connection.

Replacement becomes more likely when the valve itself has deteriorated, or a repair is unlikely to provide a reliable seal.

A radiator valve may need replacing if:

• The valve body is cracked or perforated: Damage to the metal body itself cannot normally be repaired by tightening a connection.

• The spindle or gland keeps leaking: If the seal cannot be adjusted or replaced successfully, the valve may need to be changed.

• The valve mechanism is seized or damaged: A valve that no longer operates correctly and is also leaking may be beyond a sensible repair.

• Corrosion has significantly weakened the valve: Heavy corrosion can affect the strength of the valve body and make further leaks more likely.

• The valve is damaged or badly misaligned: Physical damage or significant strain on the valve can prevent the connections from sealing reliably.

• The same valve-body leak keeps returning: A recurring leak after a proper repair can indicate that the valve itself has deteriorated.

• Replacement parts are unavailable: On older or less common valves, replacing the complete valve may be more practical than trying to source individual internal components.

Not every problem around a radiator valve means the whole valve needs replacing. A damaged radiator tail, compression olive, section of pipework or thermostatic head may be repaired or replaced separately if the valve itself is still in good condition.

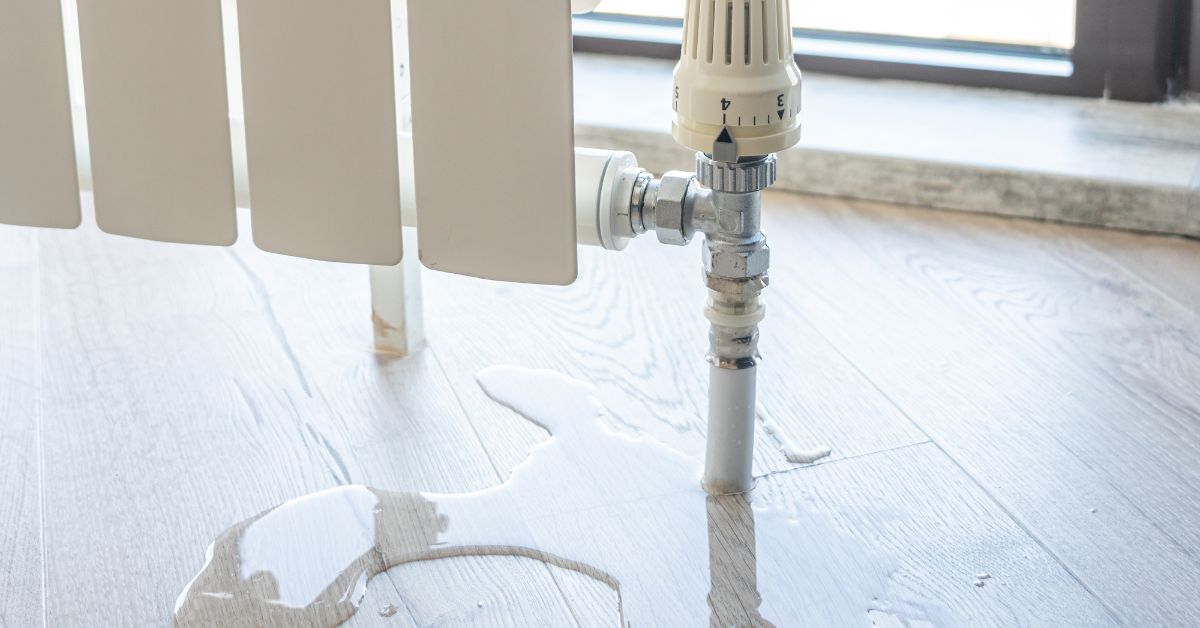

What Should You Do If The Valve Starts Leaking Heavily?

If a leaking radiator valve suddenly changes from a slow drip to a heavier flow, act quickly to limit water damage and avoid making the fault worse.

• Turn the heating off: Switch off the central heating immediately and allow the radiator to cool if possible.

• Protect the area: Use towels and a bucket or bowl to catch the escaping water and protect the floor.

• Isolate the radiator if you can: If both radiator valves turn freely, close them carefully to stop more heating water entering the radiator.

• Do not force the valves: A stiff or seized valve can break or start leaking more heavily if too much force is used.

• Check whether the leak slows: If closing both valves stops or substantially reduces the flow, leave the radiator isolated until it can be repaired.

• Do not dismantle the valve: Do not loosen the compression nut, union or valve body while the heating system is still pressurised.

• Do not keep repressurising the boiler: Adding more water will not repair the leak and may allow more water to escape.

• Use the main stopcock only if needed: If you cannot tell whether the leak is coming from the heating circuit or nearby mains-fed pipework, turning off the main water supply may help, but it may not stop water already contained in a sealed heating system.

• Get urgent help if the flow continues: Call a plumber if you cannot isolate the radiator, the leak remains heavy or water is reaching ceilings, flooring or electrical fittings.

Do not assume that removing a TRV head or closing the control at the top of the valve will necessarily stop water escaping from a damaged valve body or connection.

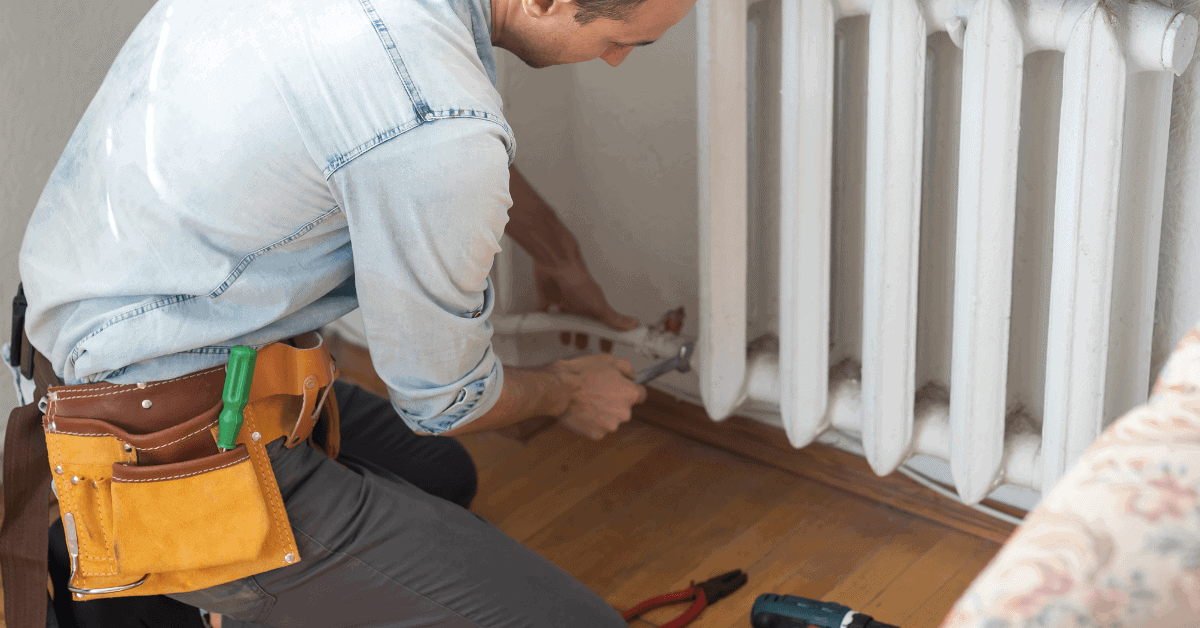

When Should You Call A Plumber Or Heating Engineer?

You should get professional help if the leak cannot be controlled safely or the repair goes beyond a simple minor adjustment.

• The leak is getting worse: A steady or heavy flow needs prompt attention.

• The source is unclear: If you cannot tell whether the leak is from the valve, joint, pipe or radiator, avoid dismantling anything.

• The valve is cracked or badly corroded: Damage to the valve body usually needs proper repair or replacement.

• The joint needs taking apart: Compression joints, radiator tails and other water-bearing fittings need to be isolated before they are dismantled.

• The valve is seized: Do not force a stiff or seized valve, as this can make the leak worse.

• The system needs draining: If you are not confident isolating or draining the heating system, get professional help.

• Boiler pressure keeps falling: Ongoing pressure loss may mean water is still escaping somewhere in the system.

• Water is causing damage: Get urgent help if water is reaching flooring, ceilings or electrical fittings.

A plumber or heating engineer can identify the source, isolate the affected part of the system and repair or replace the faulty component safely.

Arrange A Leaking Radiator Valve Repair In London

A leaking radiator valve does not always mean the whole valve needs replacing. The important thing is to identify exactly where the water is escaping, whether the problem is with the spindle, radiator connection, compression joint or valve body, and whether the fault can be safely adjusted or needs a proper repair.

If you would rather have the problem dealt with professionally, we can help with radiator installation and repairs in London, including leaking manual valves, thermostatic radiator valves and damaged connections. We are also Gas Safe registered, so if the problem is affecting the wider heating system or turns out to involve the boiler, we can investigate that too. Contact Absolute Plumbing Limited to arrange a repair.

Frequently Asked Questions About Leaking Radiator Valves

Can I Tighten A Leaking Radiator Valve?

Yes, a very slight adjustment may help if a sound connection has worked loose, but tightening is not a universal solution. Excessive force can damage threads, distort an olive, stiffen a spindle or crack a valve body. Identify the source first and make sure you know which fitting you are adjusting. If the leak continues after a sensible minor adjustment, further tightening is unlikely to fix the underlying problem.

Why Does The Valve Leak Only When The Heating Is On?

Heat and pressure changes can make a marginal seal, loose connection or damaged component leak more noticeably while the heating system is running. Expansion can also affect a joint that is already compromised. A valve that appears dry when cold should still be investigated if water appears once the heating is on.

Will A Leaking Radiator Valve Make Boiler Pressure Drop?

Yes, on a sealed heating system, water escaping from a leaking radiator valve can cause the system pressure to fall. You may notice the pressure dropping after the heating has been running or find that you need to repressurise the boiler more often than usual. Repressurising restores the pressure, but it does not repair the leak.

Can I Use PTFE Tape On A Leaking Radiator Valve?

PTFE tape is not a universal fix for a leaking radiator valve. It may be appropriate on certain threaded connections when the joint has been dismantled and remade correctly, but wrapping tape around the outside of a failed seal, compression fitting or cracked valve will not repair it. The right fix depends on exactly which part of the valve, or connection is leaking.

Why Is My Radiator Valve Still Leaking After Tightening It?

If tightening has not stopped the leak, the underlying problem may be a damaged olive, failed seal, damaged thread, corroded pipe surface, misalignment or a failed valve body. More force is not necessarily the answer. Overtightening can damage the fitting or pipework, so stop adjusting it if the leak persists and have the joint inspected.

How Long Does It Take To Replace A Radiator Valve?

A straightforward radiator valve replacement will often take around an hour, including isolating the radiator, replacing the valve and checking the system for leaks afterwards. It can take longer if the heating system needs draining, the valve is seized or corroded, pipework needs altering or additional work is required before the system can be refilled and tested.

Should Both Radiator Valves Be Replaced Together?

No, both radiator valves do not automatically need replacing together. It may make sense to replace both if they are the same age and both are deteriorated, the radiator is already being removed, the heating system is being drained or there are existing balancing or control problems. A sound lockshield valve does not need replacing simply because a TRV has failed.

Can You Replace A Manual Valve With A TRV?

Yes, a manual radiator valve can often be replaced with a thermostatic radiator valve, but the wider heating controls need to be considered. A radiator in the same room as the main room thermostat would not normally also be controlled by a TRV. Valve compatibility, flow direction and pipe size may also need to be checked, and the heating system may need rebalancing afterwards.

What Does A Leaking Radiator Valve Repair Involve?

A leaking radiator valve repair may involve tightening a sound connection, replacing a gland seal, remaking a compression joint or replacing the valve if the body is damaged. The exact repair depends on where the water is escaping and whether the affected component can be isolated safely.
